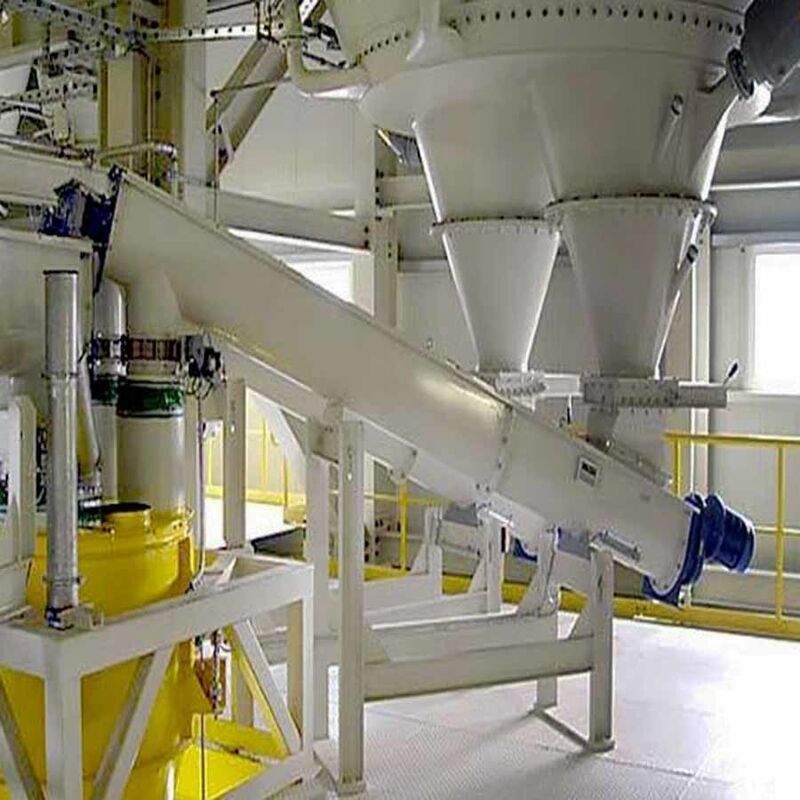

200tpd Batch Plant Raw Material Batching System for Glass Industry

200tpd Batch Plant Raw Material Batching System for Glass Industry

1.Brief Description

The batch plant is a department of glass factory that processes glass raw material by charging, dosing, weighing and mixing equipment to get the qualified batch ready for melting.

JEFFER batch plants ensures that the batch for every glass type is fed fully automatically into the glass furnace with the exact consistency and homogeneity required, at the required amount and at the right point in time–24 hours a day, 365 days per year.

3D modeling is adopted in order to guarantee design accuracy and avoid possible rework and on-site adjustments caused by design deviation, saving time for customer.

2.Raw materials preteatment

In order to improve the production efficiency, if the granularity composition of raw materials can not meet the physical-chemical properties and processing property of glass product, the raw materials will be required to be pretreated before batching.

The materials used for glass making are called glass raw materials. Based on the different quantities and functions, the materials are divided into main raw materials and auxiliary ones.

3.Main type of raw materials

4. Types of auxiliary materials

The auxiliary materials help the glass to obtain a certain character and increase the melting speed.

5. Arrangement type of batch plant

• In-Line type

Silos arrange on one line. The materials convey to mixer by belt conveyor after discharge from the scale hopper.

The mixing room is separately arranged. Material loading system is arranged on one line.

• Tower-type​

Mixer, scales and silos are vertically arranged.
The scales are connected with the mixer directly.

The material loading system for big capacities of batch need to load the materials from various directions.

6. Material feeding device

• Hopper
• Pneumatic hammer
• Sensors
• Material discharging device
• Instrument and control system

7.  Material device

• Mixer

• Conveyor device for batch plant

• Bucket elevator

Bucket elevator has a characteristic of large conveying capacity, high lifting height, stable operation and longterm span.

The bucket elevator consists of:

• Upper section
• Lower section
• Intermediate section
• Deriving section
• Operation section
